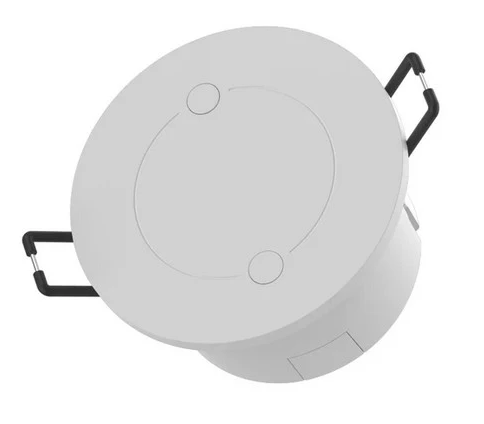

Model: S360
The Orvibo MixSense S360 is an advanced human body status sensor powered by 24GHz millimeter wave (mmWave) radar, designed to detect up to 12 human activity and presence states with exceptional accuracy.
Unlike traditional PIR motion sensors, MixSense S360 can detect micro-movements, stationary presence, and abnormal events such as falls — making it an ideal solution for intelligent lighting control, safety monitoring, and whole-home smart automation.
⭐ Key Features & Benefits
24GHz Millimeter Wave Radar Technology
Advanced mmWave Doppler radar enables highly accurate human presence detection, even when users are sitting still, reading, using a phone or sleeping.
12 Human Body Status Recognition
Precisely identifies multiple life behaviors such as walking, slight movement, resting, sleeping, and abnormal falls — delivering true human-centric intelligence.
Always-On Intelligent Lighting Control
Lights remain on during subtle movements (reading, cooking, phone use) and automatically turn off when people leave the area.
Smart Night & Rest Mode Dimming
During deep sleep, naps, or long stationary periods, the sensor enables intelligent dimming instead of sudden on/off lighting.
Fall Detection & Safety Alerts
If a child or elderly person falls or abnormal behavior is detected, the system can trigger immediate alarms — ideal for home safety and care environments.
Large Detection Coverage
Up to 12m diameter detection range with a 90° sensing angle, suitable for living rooms, bedrooms, kitchens and hallways.
Zigbee Smart Home Integration
Supports Zigbee protocol for stable, low-latency communication with compatible smart home hubs and automation systems.
🏠 Ideal Applications
- Smart lighting automation
- Bedrooms & living rooms
- Elderly care & child safety monitoring
- Night-time pathway lighting
- Whole-home intelligent solutions
📋 Technical Specifications
Product Name: Human Body Status Sensor MixSense S360
-
Model: S360
-
Radar Technology: 24GHz mmWave Doppler radar
-
Detection Range: Ø12m
-
Detection Angle: 90°
-
Detection Capabilities: 12 human activity states
-
Rated Power: 3W
-
Input Voltage: AC 100–240V, 50/60Hz
-
Communication Protocol: Zigbee
-
Communication Distance: Up to 80m (open space)
-
Light Sensitivity: Supported
-
Installation Method: Embedded ceiling mount
-
Opening Size: Ø66–68mm
-
Product Size: Ø80 × 45mm
-
Product Colour: White
-
Operating Temperature: -10°C to +55°C
-
Operating Humidity: 5%–95% RH (non-condensing)
⚠️ Installation Requirements (Important)
- Ceiling height must be less than 3 metres
- Ceiling cavity depth ≥ 5cm
- Opening diameter: 68mm
- Requires AC 220V power supply (pre-wired)
✅ Why Choose Orvibo MixSense S360?
MixSense S360 goes beyond motion detection — it understands human presence, behavior and safety.
It is a core sensing component for next-generation whole-home intelligent systems, delivering smarter lighting, enhanced comfort, and real peace of mind.
